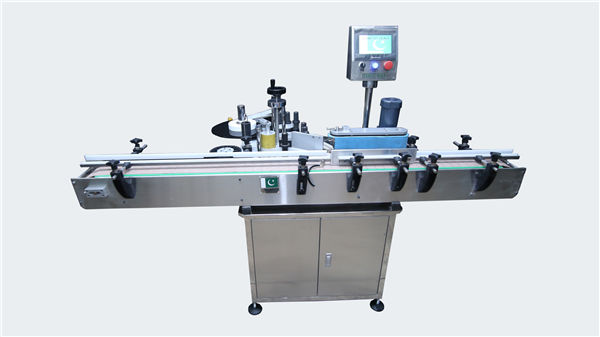

Botila biribilkatu automatikoa / botila karratuen etiketatze makina

Hasiera / Etiketatzeko makinak / Botila biribilkatu automatikoa / botila karratuen etiketatze makina

Botila biribilkatu automatikoa / botila karratuen etiketatze makina

Ezaugarri nagusiak


1.The whole electrical control system is controlled by PLC. The touch screen is in Chinese and English language.
2. It has date storage capacity and is able to store 30 groups of parameters and name for different programs.
3.Conveyor belt, bottle separator, positioning rotation mechanism adopt independent adjustable motor drive. The labeling head can be multi-direction.
4.The automatic alarm will give a warning when the labels remain 200 pieces.Automatic alarm of using up the labels, and machine stops working.
5. It applies to various products. The label position and barriers can be adjusted according to the bottle size.
6. It uses good stability and reliability inverter controlling motor.
7.With electric eye, it detects objects accurately, free from surface color, reflective different height, so that labeling can be stable and correct.
8. All accessories like cabinets, conveyor belt, barriers, and screw are made of stainless steel or aluminum materials, anti-rust, non-pullution, meeting the environmental requirements.
9. All components are strictly inspected and confirm each function stable and reliable.

Botila Etiketa Makinetako bideoak




deskribapena


Number
Item
Parametroa
1
capaity
80-120 pcs/min (adjustable speed)
2
label length
10-300mm
3
label width
20-90mm
4
bottle diameter
φ40~φ120mm
5
bottle height
30-300mm
6
voltage/frequency
220v/50-60hz
7
power
1.5kw
8
specification
2400X1200X1600mm
Number
deskribapena
Model
Marka
1
frequency converter
SINAMICS V20
Siemens
2
programmable controller
S7-200 SMART
Siemens
3
interface
SMART 700 IE
Siemens
4
switch power
DVP-PS02
Delta
5
Relay
AHN22324N
Panasonic
6
servo motorra
MHMJ082G1U
Panasonic
7
photoelectric switch
E3Z-D61
Omron
8
air switch
iC65N
Schneider
9
urgent stop button
ZB2-BS54C
Schneider
10
motor
4RK25CN-C
Maili
