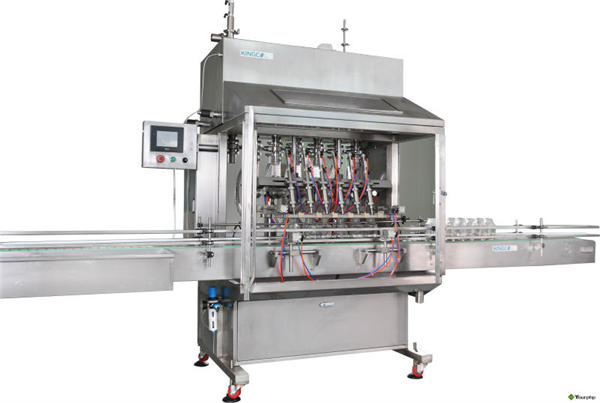

Sugar Free Light Soy Sauce betetzeko makina

Ezaugarri nagusiak

Grabitate denbora betetzeko makina hau aparra izan dadin bereziki diseinatutako produktua, esaterako: beira garbitzailea, xaboi likidoa eta abar.

(1) PLC kontrolatua, ukipen-pantaila atsegina.

(2) Marka ospetsua erabiltzen duten osagai elektriko eta pneumatikoak makinen kalitatea eta bizitza luzeko zerbitzua bermatzeko.

(3) urperatzeko urpekaritza funtzioa aparra izan daiteke.

(4) hezetutako pieza guztiak SS316-rekin eginda daude.

(5) Betetze-buru osoak ez ezik, betetzeko buru bakoitza ondo moldatu daiteke hurrenez hurren.

(6) Botilen sarrerako zenbaketa, betetze kuantitatiboa, botilen irteeraren kontaketa eta mugimendu larriak automatikoki egin daitezke.

(7) Egitura sinplea, funtzionamendu erraza, zarata txikia, exekutatzen fidagarria, betetze zehatza.

suitable for liquid packing : apple vinegar ,soy sauce ,vinegar ,fish sauce soy sauce and so on ...

zergatik egokia


1 :for different bottle shapes: round ,flat and so on for different kinds shapes of bottles ,they can share on one filling machine ,no need to change spare parts ...

2: no dropping , the filling machine we have the copy right to make sure there is no dropping after filling ( if any dropping ,soy sauce will make the bottles dirty )

3: Anti corrosive ,soy sauce is corrosive ,even stainless steel after long time use will be corrosive ,the material we use ,all the contact part SS 316L ,make sure machines are working good

4: CIP round liquid tank , as for food ,the standard is higher than others ,can not with angle ,and we have the tank is meet the standard requirement of CIP

5: foaming , we have the device which not only diving to avoide the foaming but also have some other special ways to make sure to decrease the foaming.

filling range : 50ml -1000ml        1L -5L      capacity : 100ml 5000BPH       500ml 4000BPH      1000ml 35000BPH

Produktuaren Deskribapena


is a high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action. The machine is especially suitable for foodstuff. For example: white spirit, soy sauce, vinegar, seasoning, vegetable oil, syrup, mineral water, edible liquid as well as chemical liquid. It has accurate filling measurement; there is not bubble and drop. It suits for the filling of all kinds of bottle (including irregular bottle) ranging from 25 to 1000 ml.

for soy sauce and vinegar such kind of foaming liquid filling ,without dropping ,with accurate filling level

with diving function to decrease foaming during filling

with two kinds of filling speed ,fast filling and slow filling

1,Advanced design

1.1 The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes.

1.2 Short filling circle, high production capacity.

1.3 Changing filling circle, high production capacity.

1.4 User may choose the filling volume and decide the filling heads per own production capacity.

1.5 The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.

1.6 Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.

2. Unique filling way

2.1 Selecting straight bottle-feeding and bottle-discharging in group, make the filling function extend, the vessels of all kinds of shape are got effective filling.

2.2 Using the world advanced gas filling valve, ensure the filling process non-drop and non-drool.

2.3 Stronger PLC software support, may realize the ideal filling operation.

2.4 Friendly person-machine interface, all operations are completed on the touching color screen.

3. Accurate measurement control

3.1 Using fixed sprue parameter to control the filling time realizing the filling of the different measurements.

3.2 The precision time of the pneumatic valve filling may set to 0.01 second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.

3.3 Each filling-head’s measurement may be individually adjusted to realize the same filling measurement.

3.4 The machine set such function: having counting program of bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.

3.5 More or less of the filling volume, may initially adjust to the needed filling volume, then micro adjust, can get the ideal filling measurement precision.

Parametro teknologikoak


1Abiadura4500-3000 bottles/h
2Betetze-eremua100-1000ml
3Neurketaren zehaztasuna± 1%
4Lan egiteko ahalmena220VAC
5Airearen presioa6-7kg/cm²
6Airearen kontsumoa0.5m³/minute
7Potentzia-tasa0.8kw
8Beste gailu batzuen potentzia-tasa5.5kw(aircompressor)
9Pisu garbia650kg
10Kontagailuaren tamaina2200×870×1900mm

configuration


NO.ITEMSUPPLIERMarka
1Pantaila taktilaTaiwanWEINVEIW
2PLCJaponianMitsubishi
3Photo sensor for bottlesJaponianOPTEX
4solenoid valveTaiwanSHAKO
5Level buttonUSAJOHNSON CONTROLS
6angle seat ValveJointedBURKERT
7Other divicesTaiwanAirtac
8Power buttonFranceSchneider
9ButtonFranceSchneider
10frequency converterFranceSchneider
11bottle- transport motorTxinaHuangyan
12Abiadura erreduktoreaTxinaJiao xing
13RelayJaponianOmron



Xehetasunak


Mota: Betetzeko makina
Egoera: Berria
Aplikazioa: Jantziak, Edariak, Kimika, Lehengaiak, Elikagaiak, Makineria eta Hardwarea, Medikua
Pakete mota: upela, botilak, latak
Paketatzeko materiala: Beira, metala, plastikoa
Kalifikazio automatikoa: automatikoa
Gidatutako Mota: Pneumatikoa
Tentsioa: 220V 50HZ
Potentzia: 1,8kw
Place of Origin: Shangahi, China (Mainland)
Markaren izena: NPACK
Dimension(L*W*H): 2200*870*2300mm
Pisua: 650 kg
Certification: ISO CE CCVO SONCAP
Saldu osteko zerbitzua: Atzerrian zerbitzuko makineria eskuragarri dauden ingeniariak
body material: SS 304
contact part: SS 316
