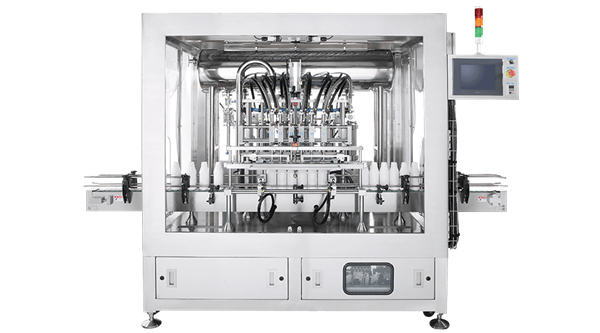

5000-8D Automatic piston filling machine

is suitable for packing liquid agrochemical, EC, SC or viscosity material (1000ml-5000ml). This machine is driven by the servo motor and volumetric filling principle which realized the high precision of filling. It is controlled by the PLC and human-machine interface. High precision electronic scale data conveying system can be matched with the machine which makes the weight adjusting faster.

1.It is controlled by the PLC, the servo motor drives the double screw transmission structure which realize the high precision filling. No bottles, no filling which links with the other equipments.

2.When changing the filling volume, only press one key in the touch screen can be adjusted. Fine-tune of the filling volume can be adjusted on the touch screen, no need to enter the weighing value.

3.Motor drives the diving of the filling nozzle and matched with the variable filling speed can reduce the possibility of foaming when filling which can avoid polluting the bottles.

4.A liquid holder is installed under the filling nozzles to make sure the liquid can not pollute the bottles.

5.Bottle-in and bottle-out can have two modes: Normal and fast. The fast mode has no delay in bottle-in and out which improves the capacity, which ups 25%.

6.The machine uses the new PTFE piston sealing parts which improve the abrasion resistance and applicability for different materials. It solves the problem of piston filler can not workable for SC, EC, and high viscosity.

7.The whole machine use the frame of Stainless Steel 304 that with perfect anti-corrosion effect. The stainless steel cover and the toughened glass door prevent the dirty air during filling from polluting the environment. Meanwhile, dimensionΦ100mm exhaust outlet reserved on the top of the filling lancers which connected to the induced draught system for exhausting gas.

8.Protective treatment over the interface makes our machine more safety.

9.Filling Machine will automatic stop if the jam and topple of bottles. It can realize the link function with other equipment.

10.It is equipped with the electric scale to feedback the weight. You do not need to manually input the data when fine-tune the volume. Only need to put the filled bottle on the scale, press the number of nozzle will be done. (This function is optional).

Teknologia-parametroa


Parametro Tekniko Nagusia (Interesa baduzu, jar zaitez gurekin harremanetan plano zehatza bidaltzeko)
Edukiera:
≤2000 Bottles/hour (1L) ≤800 Bottles/hour (5L)for high foaming material
Betetze-eremua:
1000-5000ml
Betetze-zehaztasuna:
±% 0,5
Aplikagarriaren botilaren diametroa:
Round Bottle Diameter:Φ60-140mm Height:100-340mm (Round/Square/Flat Bottle)
Energia iturria:
AC380V, 50HZ
Airearen presioa:
0,6-0,8 MPA
Power:
2.5KW
Air consumption:
200L/Min
Pisua:
about 1000Kg
Kanpo-dimentsioa:
2400×1150×2300(L×W×H) mm2875 mm* 1540mm* 2300 mm (L×W×H)
NO.
Esleipenaren izena
Origin
Marka
1
PLC
France
Schneider
2
Pantaila taktila
France
Schneider
3
Maiztasun Bihurgailua
France
Schneider
4
Servo Sistema
France
Schneider
5
Counting Sensor
U.S.A
BANNER
6
Hurbiltasun etengailuak
France
Schneider
7
Power Switch
France
Schneider
8
Presioaren etengailua
Japonian
SMC
9
zilindro
Taiwan
Airtac
10
Balbula solenoidea
Korea
F.TEC

Gure Zerbitzuak


❤ Warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.

❤ Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there untill get your agreement.

❤ Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.

❤ Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.

❤ Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.

❤ Certificate services: we can provide related certificates to customers freely according to the request of customers.

❤ Inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment.

❤ The file: the Manual Specification, report of the material which used to the equipment and others documents related to the GMP authentication information will be provided by us.

Xehetasunak


Mota: Betetzeko makina
Egoera: Berria
Aplikazioa: Edariak, produktu kimikoak, lehengaiak, elikagaiak, makineria eta hardwareak, medikuak
Pakete mota: upela, botilak, latak
Paketatzeko materiala: Beira, metala, plastikoa
Kalifikazio automatikoa: automatikoa
Gidatutako Mota: Elektrikoa
Tentsioa: 380V / 50hz
Potentzia: 2,5KW
Place of Origin: Shanghai China (Mainland)
Markaren izena: NPACK
Dimension(L*W*H): 2400*1150*2300mm
Pisua: 1000kg
Ziurtagiria: CE GMP ISO
Saldu osteko zerbitzua: Atzerrian zerbitzuko makineria eskuragarri dauden ingeniariak
Filling Capacity: ≤2000 Bottles/hour(1L) ≤800 Bottles/hour(5L)
Filling Range: 1000-5000ml
Filling Precision: ±0.5%
Applicable Bottle Diameter: 60-140mm eight:100-340mm (Round/Square/Flat Bottle)
Airearen presioa: 0,6-0,8 MPA
Air consumption: 200L/Min
PLC / Ukipen-pantaila / Inbertsorea: Schneider
Zilindroa / solenoide balbula: FTEC
Materiala: 316L + 304 Altzairu herdoilgaitza
