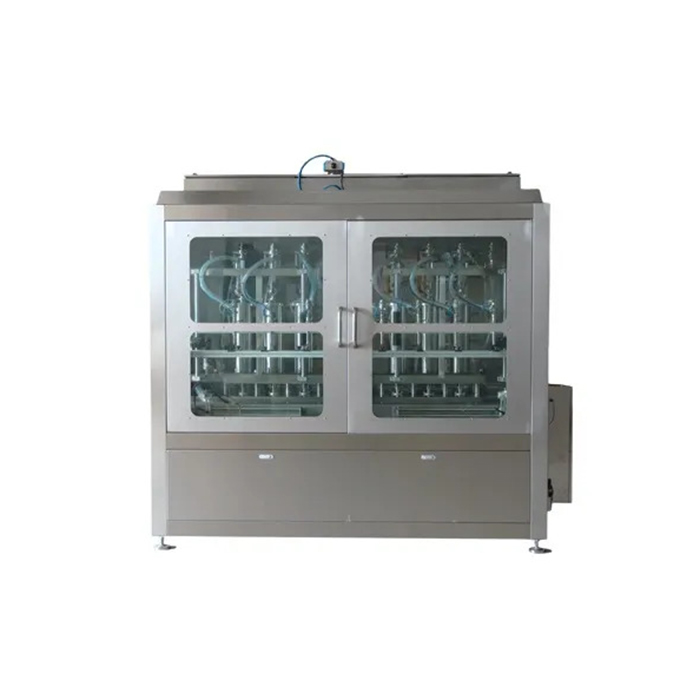

Automatic PET Bottle Filling Machine / Bottling Line / Project

PET botilako hiru makina banan-banan garbitzeko, betetzeko eta kapsulatzeko funtzioa barne hartzen du. Atzerrian teknologia aurreratuan oinarrituta dago eta ura betetzeko eskaeren arabera diseinatu da

Ezaugarri nagusiak

1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

Lanpostuaren zenbatekoa	32 garbitzea, 32 betetzea, 10 estalkia
Ekoizpen ahalmena	15000BPH (500ml)
Airearen iturriaren presioa	0.7Mpa
Airearen kontsumoa	1.2m3 / min
Uraren presioa garbitzeko	0.2-0.25Mpa
Uraren ahalmena garbitzeko	2.5T / H
Motorearen potentzia nagusia	3.2kW
Potentzia totala	4.8kw
Dimension	4250X2150X2200mm (L × L × H)
pisua	5200kg

Ura botilaratzeko sistema automatiko osoak ere ematen ditugu

4 zati nagusi ditu.

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

Linearen deskribapen nagusia:

1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5. We provide the engineers for customer installation, training in customer's factory.

Ereduak eta Abiadura Zerrenda

Model	XGF8-8-3	XGF14 / 12/5	XGF16 / 16/5	XGF24 / 24/8	XGF32 / 32/10
Eskuak garbitzea	8	14	16	24	32
Betetze-balbulak	8	12	16	24	32
Eskuak harrapatzea	3	5	5	8	10
PET / beira botila egokiak (150ml eta 2000ml)
Aforoa (Abiadura) Oinarria 500 ml-tan	2000BPH	5000BPH	7000BPH	12000BPH	15000BPH

Osagai elektrikoen markak hornitzailea

Konposizio nagusia	Deskribapena Hornitzailea
PLC	Mitsubishi (Japonia), Siemens (Alemania)
Pantaila taktila	Weinview (Taiwan)
Maiztasun bihurgailua	Mitsubishi (Japonia), Siemens (Alemania)
Airearen etengailua	Schneider (Frantzia)
Breaker	Siemens (Alemania)
harremanetan jarri	Siemens (Alemania)
Etengailu fotoelektrikoa	Omron (Japonia)

Xehetasunak

Mota: Betetzeko makina
Baldintza: New
Eskaera: Edaria, Kimika, Medikua
Pakete mota: Botilak
Enbalatzeko materiala: Plastikoa
Kalifikazio automatikoa: automatikoa
Gidatutako Mota: Elektrikoa
Tentsioa: 380V / 220V
Potentzia: 4,8KW
Jatorrizko lekua: Shanghai, Txina (kontinentala)
Markaren izena: NPACK
Neurria (L * W * H): 4250X2150X2200mm
Pisua: 5200KGS
Ziurtagiria: CE, ISO, SGS
Saldu osteko zerbitzua: Atzerrian zerbitzuko makineria eskuragarri dauden ingeniariak
Fabrika: Loturak MAKINERIA
Botilaren tamaina: 150ml eta 2000ml
Botilaren lepoko diametroa: 15-55mm
Botilako materiala: plastikoa / beira
Abiadura (oinarria 500ml botilan): 15000B / H
Kontrol Sistema: PLC Touch Screen (MITSUBISHI JAPAN)
Tapoia: Torlojua / sakatu txanoa
Tapoi igogailua: Dute
Betetze likidoa: ur mineralak / puruak
